Powder Coating Troubleshooting Guide

Chapter Ten: Powder Application Tips

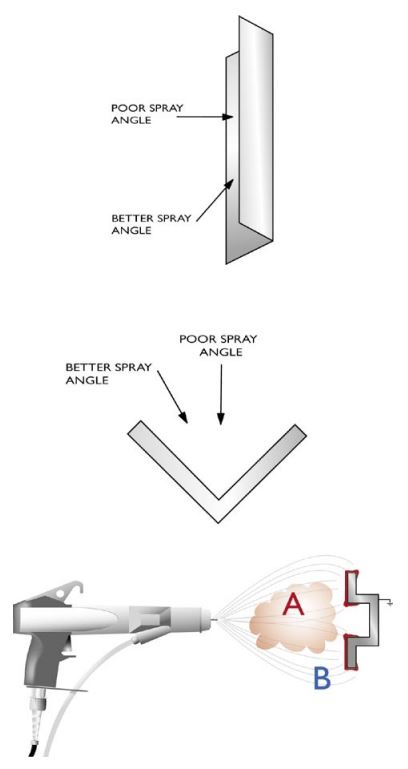

Alleviating the Faraday Cage
Faraday Cage effect: spray angles for powder coating corners

Overcoming the Obstacles of the Electrostatic Process:
  • Blast powder into the recesses
  • Increase the powder flow rate
  • Maximize the gun to part distance
  • Use slotted tip to concentrate the spray
Trying to overcome the process leads to excess film thickness and powder usage and may cause a non-uniform build.

Using the Electrostatic Process:
  • Finesse the powder into recesses
  • Decrease powder gun flow rates
  • Reduce the gun’s microamps (µA) to 20
  • Maintain gun to part distance of ~ 8-10"
  • Use slotted tip to concentrate spray
  • Approach recess at an obtuse angle
These methods may result in a slower application time.

Spraying in the Faraday Cage:
Spraying at the recesses of a part at an obtuse angle can help to apply the coating properly.
  • It reduces air turbulence
  • Allows deeper penetration
  • Minimizes early back ionization
  • Utilizes more lines of force

A: Lines of Force
The corona generated charge field and lines of force tend to create Faraday cage difficulties.

B: Particle Space Charge
Lowering the voltage and allowing space charge created by powder cloud to develop near the recess will help with penetration.

Impact Fusion

Impact fusion occurs when powder is subjected to high velocity and/or a restriction in its path. This creates excess friction, softening and depositing of powder at the point of contact.

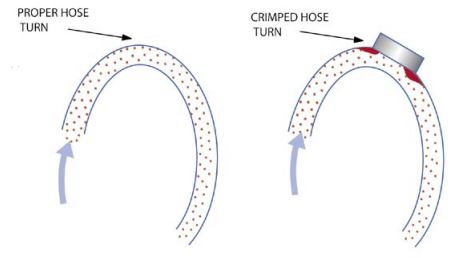

Impact Fusion on Hoses
Impact fusion on powder coating hoses - powder coating troubleshooting guide
Causes of Impact Fusion:
  • Plugged or worn pump sleeves
  • Scratched or burred venturis
  • Crimped, worn, or cracked hoses
  • Deflectors and gun nozzles
  • Powder pathway diameter change
  • Heat present on powder pathway
  • Excessively high gun pressures
  • Low glass transition temperature powder
  • Powder particle size to fine
  • Moisture in the air supply

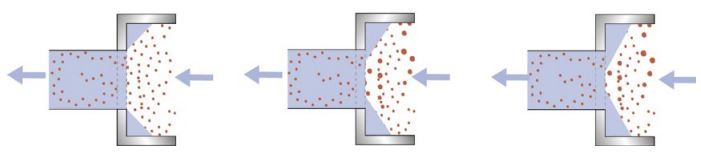

Venturi Impact Fusion

Venturi impact fusion with powder coatings - powder coating troubleshooting guide

Venturi and Gun Controls


Gun controls on a powder coating gun - powder coating troubleshooting guide
Typically 2-3 Air Controls per Gun:
  1. Powder Regulator (also called Flow or Main) controls the amount of powder being sprayed and the velocity and throw of the powder.
  2. Atomizer Regulator (also called diffuser or Sub) controls the density and size of the powder cloud as well as insuring steady output.
  3. Swirl Regulator (also called TIP) delivers air directly to the gun tip which can shape the cloud and prevent powder build up at the electrode and deflector.
Fluidization pressure on a feed hopper can also noticeably affect the amount of powder being sprayed.



Powder, Flow, or Ejector Rate
Too Low:
  • Powder spurting
  • Low film build
  • Poor penetration into recesses
Powder, flow, or ejector rate Too High:
  • High impact fusion
  • High venturi wear
  • Low transfer efficiency
  • Low wrap
  • Poor penetration into recesses


Atomizer or Diffuser Rate
Too Low:
  • Powder spurting
  • Streaking on parts
  • Low wrap around
Atomizer or diffuser rate Too High:
  • Low film build
  • Low transfer efficiency
  • Fat Edges
  • Poor penetration into recesses

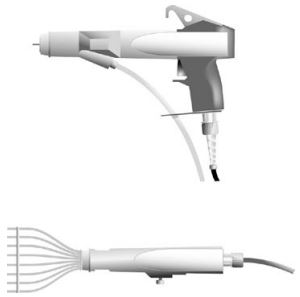

Optimizing Gun Pressures
Optimizing gun pressures for powder coating - powder coating troubleshooting guide

Excessive gun pressures will have a dramatic NEGATIVE impact on spray quality and efficiency.

Too much powder/flow pressure can:
  • Cause excessive wear of equipment
  • Create impact fusion problems
  • Cause gun spitting and puffing
  • Increase film thickness uniformity
  • Decrease first pass transfer efficiency
  • Increase amount of reclaim or overspray
  • Reduce electrostatic attraction:
    • Large particles can bounce off
    • Particles traveling too fast for wrap
    • Less time in corona field charge
    • More particles to share charge
    • Increased friction generates high static (positive) charge and reduces the effectiveness of the corona (negative) charge

Factors Affecting Charge
  • Composition
  • Resin type
  • Resin content - (% used in formula)
  • Particle size
  • Particle shape
  • Substrate type - (conductivity)
  • Substrate shape - (flat, frame, recess, etc.)
  • Substrate size
  • Substrate temperature
  • Line speed - (time to spray)
  • Booth air flow
  • Humidity
  • Gun to particle distance
  • Virgin to reclaim ratio
  • Quality of ground
  • Gun flow rates - (volume and speed)
  • Gun tips & deflectors
  • Gun voltage & current - (amount of charge)

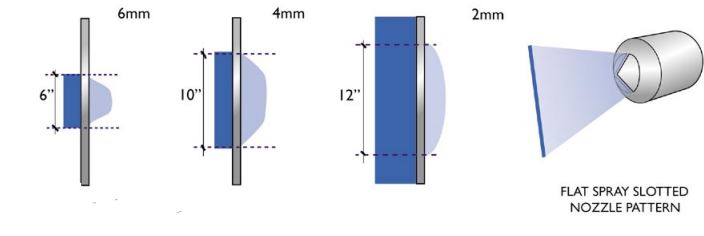

Optimizing Gun Tips

Optimizing gun tips on powder coating guns - powder coating troubleshooting guide

Deflector Size Affects on Powder Cloud:

  • Determines peak film build and uniformity
  • Determines size and coverage area of cloud
  • Concentrates powder along edges of pattern
  • Gives more uniform deposit with moving parts

Flat spray slotted nozzle pattern powder coating gun tipOptimizing gun tips on powder coating guns - powder coating troubleshooting guide

Nozzle Affects on Powder Cloud:

  • Develops flat rather than conical spray pattern
  • Typically covers much smaller spray area
  • Heavier build in center of spray pattern
  • Concentrates more powder into recesses

Applying a Second Coat

Many obstacles associated with back-ionization are also encountered with a second coat of powder:

  • Cured film is a better dielectric insulator than powder
  • Film has no way to bleed off free ions
  • First coat gains charge rapidly

There are techniques to help in the application of a second coat:

  • Reduce microamps (µA) to 10
  • Increase gun to part distance
  • Slightly increase cloud density
  • Use current limiting gun if possible
  • Use free ion collecting device

To ensure good intercoat adhesion, it is also recommended that the coating be lightly sanded and then cleaned.
